Specialized Tools · Kiln · No. 03

Is your kiln working in the band of its type?

Free lime jumps, the coating falls, the burning zone shell runs hot and the refractory bill grows. The flame, the kiln speed and the load decide it, yet they are rarely checked together, and the operator changes one thing at a time without knowing where the kiln sits in its band.

What it savesKeeps the burning zone and the flame where the clinker is made, not the shell.

US$30One-time · yours to keep
See the sample report (PDF)
  • Excel 2013 or later, Windows and Mac
  • No macros, no internet
  • Updates for life
  • Updates for life
  • Your name on every sheet
Your figures in: every result graded GOOD, WATCH or ACT, Today against What if

How this file helps

Find out if it is happening to you, how much it costs, and what to correct.

1Find outResidence time, filling and loads, graded against kilns of the same type.
2MeasureThe flame of the main burner: primary air, tip velocity and momentum.
3CorrectToday's condition from O2, burning zone and back end, with the actions in order.

What it gives you

The kiln, graded against its own type.

Residence time, filling and loads against kilns of the same type
The flame of the main burner: primary air, tip velocity, momentum
Today's condition from O2, burning zone and back end: 27 cases, the actions in order
What if: a new kiln speed or primary air, before trying it

See it working

Worked on a demonstration plant.

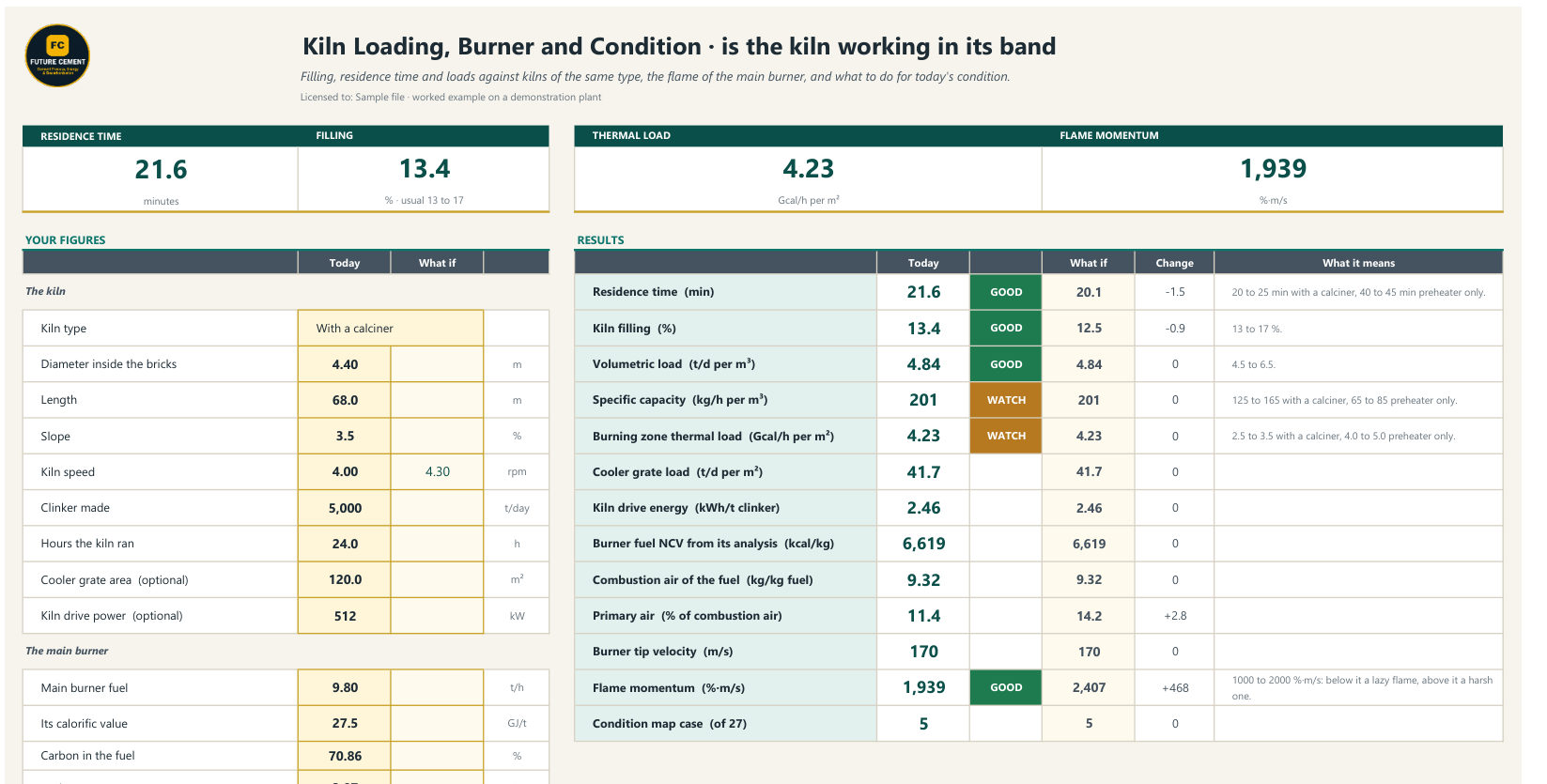

Your figures in: every result graded GOOD, WATCH or ACT, Today against What if
Your figures in: every result graded GOOD, WATCH or ACT, Today against What if
The chart drawn for you, ready for the report
The chart drawn for you, ready for the report

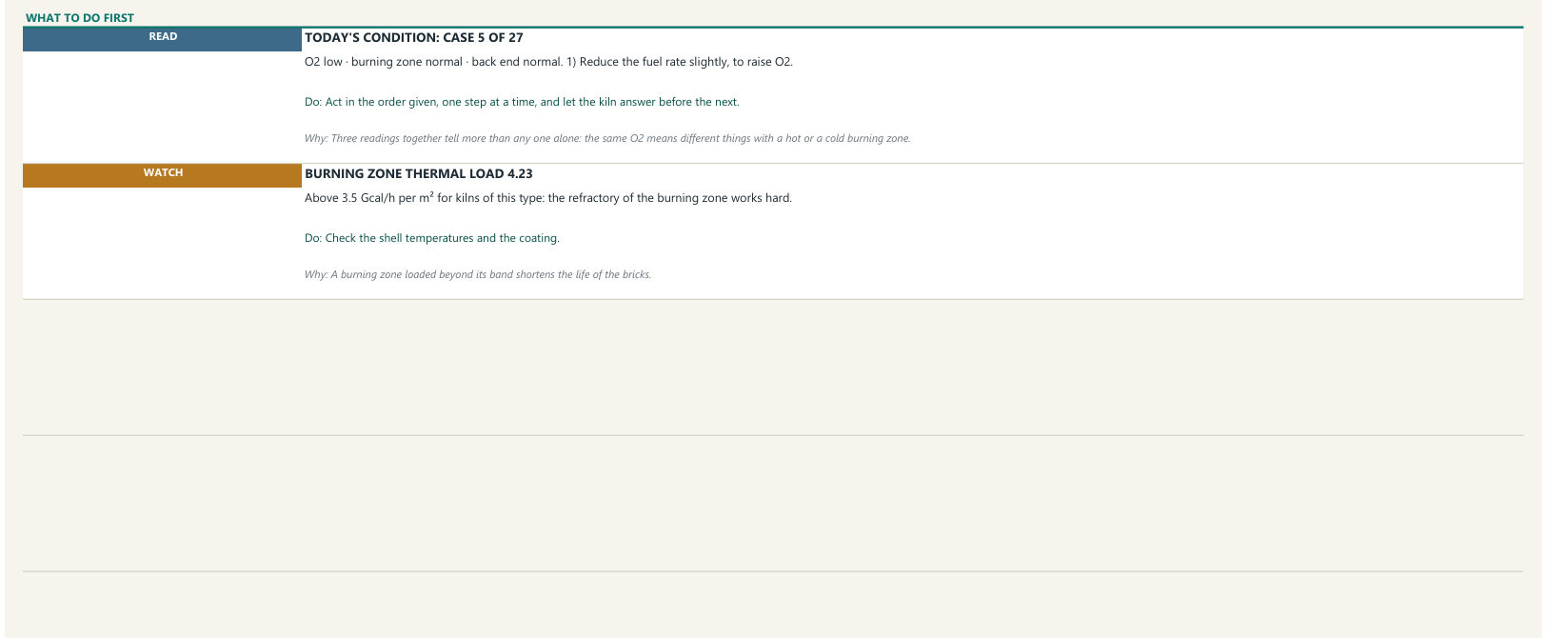

What to do first, and why
What to do first, and why

Worked out for you

5 results from the figures you already measure.

Residence time and fillingVolumetric load and specific capacityBurning zone thermal loadPrimary air, tip velocity and flame momentumThe condition case and its actions

What is inside the file

Kiln Loading and BurnerYour figures in, Today and What if side by side, every result graded, two charts, and what to do first.
MethodHow every result is obtained, and the references each grade is read against.
LicenseYour name, your company and your email, in the heading of every sheet.

What you need

  • 1Kiln diameter, length, slope and speed
  • 2Clinker made
  • 3The main burner fuel and its analysis
  • 4Primary air, O2, burning zone and back-end temperatures
Industry methodsThe methods used across the cement industry, worked out step by step.
Graded, not just calculatedEach result is marked GOOD, WATCH or ACT against the usual range, with the reason.
Ready for the reportPrint-ready pages with the charts drawn for you.
Yours to keepOne price, no subscription. Use it again and again.

Questions

Before you buy

Can I see it before I buy?

Yes. The sample report shows the whole first sheet of the file, worked on a demonstration plant: every result, the charts and what to do first.

Does it need the internet or macros?

No. It works on Excel 2013 or later, on Windows or Mac, with no macros and no connection. Nothing to install.

Can I use it for several kilns?

Yes. Save one copy per kiln and per test. The file is yours to use for as long as you like.

What is the What-if column?

Type a new figure beside today's and see every result change, before anything is changed in the plant.

Who may use my copy?

One engineer or one plant. Your name is written on every sheet.

How do I pay?

Press Buy. We reply on WhatsApp and by email with the bank details. When the payment arrives, your copy is ready to download from this page.

Is your kiln working in the band of its type?

Have the answer with your next figures.

US$30One-time · yours to keep
Send this file to a colleague: WhatsApp LinkedIn Email
